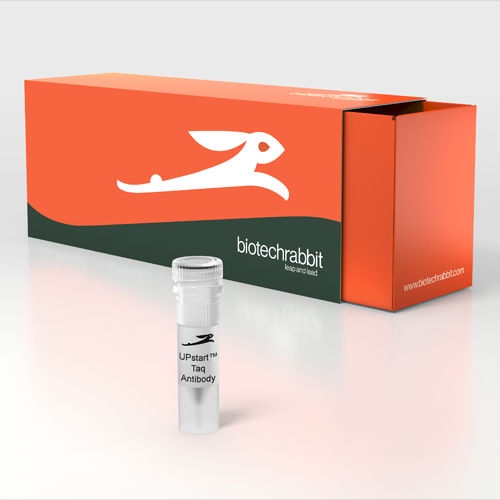

biotechrabbit™ UPstart Plus Taq Antibody is an ultra-pure monoclonal antibody against the Taq DNA polymerase. It is produced in cell culture to ensure highest quality.
The antibody can be used with highly efficient Taq DNA polymerases, provides an excellent method for “hot start” PCR and enhances PCR specificity and sensitivity. PCR hot start prevents the formation of primer–dimers and nonspecific amplification and allows convenient PCR setup at room temperature.
In the first denaturation step of the thermal cycling, the UPstart Pus Taq Antibody becomes nonfunctional and the active Taq DNA polymerase is released. This antibody-mediated hot-start method is significantly more convenient to use than other hot-start methods. Polymerase reactivation using this antibody is faster than with methods using chemically inhibited polymerases.
Component | Composition |
UPstart Taq Antibody Plus | UPstart Taq Antibody Plus, 1 mg/ml (5 U/µl) in storage buffer containing 50% (v/v) glycerol |
STORAGE | −20°C (until expiry date – see product label) |
Unit Definition
One unit is defined as the amount of antibody required to inhibit >95% of 1 unit Taq DNA polymerase at 60°C. One unit UPstart Plus Taq Antibody (200 ng of the antibody) will ensure inhibition of Taq DNA polymerase.
Quality Control
Functional Assay
UPstart Plus Taq Antibody was functionally tested on hot-start PCR.
Inhibition activity
The Taq DNA polymerase activity was inhibited to >95% at 60°C when adding 200 ng UPstart Plus Taq Antibody (1 U) to one unit Taq DNA polymerase.
Mouse genomic DNA contamination assay
An UPstart Plus Taq Antibody sample is analyzed for the presence of contaminating mouse genomic DNA. No mouse genomic DNA was detectable.
Prevention of PCR contamination
When assembling the amplification reactions, care should be taken to eliminate the possibility of contamination with undesired DNA.
- Use separate clean areas for preparation of samples and reaction mixtures and for cycling.
- Wear fresh gloves. Use sterile tubes and pipette tips with aerosol filters for PCR setup.
- Use only water and reagents that are free of DNA and nucleases.
- With every PCR setup, perform a contamination control reaction that does not include template DNA.
Pre-mix preparation of Taq DNA polymerase and UPstart Plus Taq Antibody
A pre-mix will result in a hot-start Taq DNA polymerase that can be used for the setup of hot-start PCR reactions. An example for a pre-mix is given below.
Component | Volume | FINAL CONCENTRATION |
Taq DNA Polymerase, 5 U/µl | 20 µl | 100 U |
UPstart Plus Taq Antibody | 20 µl | 100 U |
Gives 100 reactions with 1 unit Hot-start Taq DNA polymerase per reaction. For one reaction use: | ||
Taq DNA Polymerase / | 0.4 µl | 1 U Hot-Start Taq DNA Polymerase |
- Mix and centrifuge briefly to collect the liquid in the bottom of the tube.
- The mix can be stored at -20°C for up to 6 months.
Basic Protocol
- Thaw on ice and mix all reagents well, especially the MgCl2 solution and dNTPs.
- Keep all reagents and reactions on ice.
- When setting up multiple reactions, prepare a master mix of water, buffer, dNTPs, UPstart Plus Taq antibody and Taq DNA polymerase. Prepare enough master mix for one more than the actual number reactions. Alternatively, use biotechrabbit Hot-Start PCR Master Mix, 2× (cat. no. BR0200201)
- Pipet the master mix into thin-walled 0.2 ml PCR tubes.
- Add template and primers separately if they are not used in all reactions.
Component | Volume | Final concentration |
Taq DNA Polymerase, 5 U/µl | 0.2 µl | 1 U |
UPstart Plus Taq Antibody | 0.2 µl | 1 U |
Mix Taq DNA polymerase and UPstart Taq Antibody and incubate at room temperature for 15 min. Alternatively use pre-mixed Taq DNA polymerase and UPstart Taq Antibody. | ||
10× Reaction Buffer | 5 µl | 1× |
50 mM MgCl2 | Variable (standard 1.5 µl) | 1.5 mM |
| Higher than 2 mM MgCl2 might increase yield but reduce fidelity | |
5× PCR Enhancer (optional) | 10 µl | 1× |
10 mM dNTP Mix | 1 µl | 200 µM |
Forward primer | Variable | 0.2–1 µM |
Reverse primer | Variable | 0.2–1 µM |
Template DNA | Variable | 10 pg–1 μg |
| Use 0.01–1 ng for plasmid or phage DNA and 0.1–1 μg for genomic DNA | |
Nuclease free water | Variable |
|
Total volume | 50 µl |
|
- Mix and centrifuge briefly to collect the liquid in the bottom of the tube.
- Place in the PCR cycler.
Cycling Program
Step | Temperature | Time | Cycles |
Initial activation | 94°C | 3–5 min | 1 |
Denaturation | 94°C | 30 s | 25–35 |
Annealing | 55°C | 15–30 s | 25–35 |
| Approximately 5°C below Tm of primers | ||
Extension | 72°C | 30–60 s/kb | 25–35 |
Final extension | 72°C | 5 min | 1 |
| To extend all incomplete PCR products | ||
Storage in the cycler | 4°C | Indefinitely | 1 |
- Add loading dye solution (see DNA Loading Dye, 6×, cat. no. BR0800301) to the reactions to analyze PCR products on a gel or store them at −20°C.
